LC circuits
An

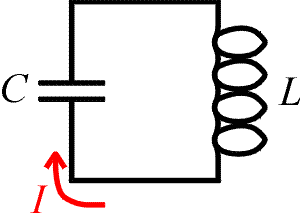

LC circuit is simply a closed loop with only two elements, a capacitor and an inductor. We
will show that the LC circuits have resonant properties - they respond to certain
frequencies. Therefore they can serve as the basis for any device that needs to tune to a
specific frequency such as a radio. In an LC loop the charge oscillates back and forth
through the capacitor with a given frequency just as a mass on a spring oscillates. To
demonstrate this equivalence, we list several equations for both a mechanical spring and
for an LC circuit.
mechanical spring |
LC circuit |
velocity:  |
current:  |
kinetic
energy:  |
inductor's
energy:  |
potential
energy:  |
capacitor's
energy:  |
Eq. of
motion:  |
Kirchoff's
law:  |
frequency:  |
frequency:  |
The parameters that determine the motion of a spring are the mass m, spring constant k, the position x, and the velocity v which is the rate of change of x. The parameters that determine the behavior of an LC circuit are L, C, Q and I which is the rate of change of Q. Thus there is a one-to-one correspondence since the equations of motion are identical given the substitutions:
The characteristic frequency of and LC circuit is the frequency at which large amplitudes are built up when a driving force comes in at that frequency. A child on a swing will be sensitive to a pushing force which comes regularly with the natural frequency of the swing. A force that comes at a different frequency will not build up a large amplitude as it will often be pushing against the child's motion. We call this the resonant frequency.
